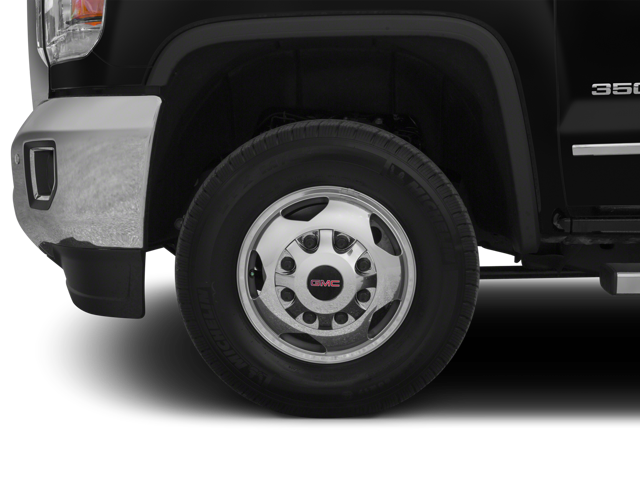

• Wheels, 18" (45.7 cm) forged polished aluminum includes 18" x 8" (45.7 cm x 20.3 cm) steel spare wheel. (Requires single rear wheels.)
• Tires, LT265/70R18E all-season, blackwall (Requires single rear wheels.)
• Wheelhouse liners, rear (Not available with dual rear wheels.)
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door
• Bumper, front, body-color

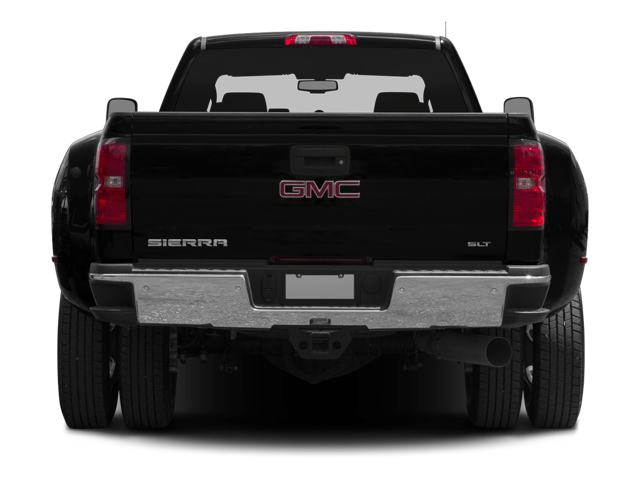

• Bumper, rear body-color with bumper CornerSteps
• CornerStep, rear bumper
• LPO, Assist steps, chromed tubular, 6" rectangular (dealer-installed) (May be substituted with (VXJ) assist steps, LPO. (VXH) is deleted when (VXJ) assist steps, LPO is specified.)
• Moldings, bodyside, chrome
• Headlamps, halogen projector with LED signature
• Fog lamps, front, halogen
• Lamps, cargo area, cab mounted with switch on center switch bank
• LED Lighting, cargo box with switch on center switch bank
• Mirrors, outside heated power-adjustable vertical camper, manual-folding and extending, black. Includes integrated turn signal indicators consisting of 50 square inch flat mirror surface positioned over a 20 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable).
• Glass, deep-tinted
• Window, power, rear sliding with rear defogger (Not included when (VYU) Snow Plow Prep Package is ordered.)
• Door handles, chrome
• Tailgate and bed rail protection caps, top
• Tailgate, locking, utilizes same key as ignition and door (Deleted with (ZW9) pickup box delete.)
• Tailgate, EZ-Lift and Lower (Deleted when (ZW9) pickup box delete is ordered.)
• Cargo ties downs (4), movable upper (Deleted when (ZW9) pickup box delete is ordered.)

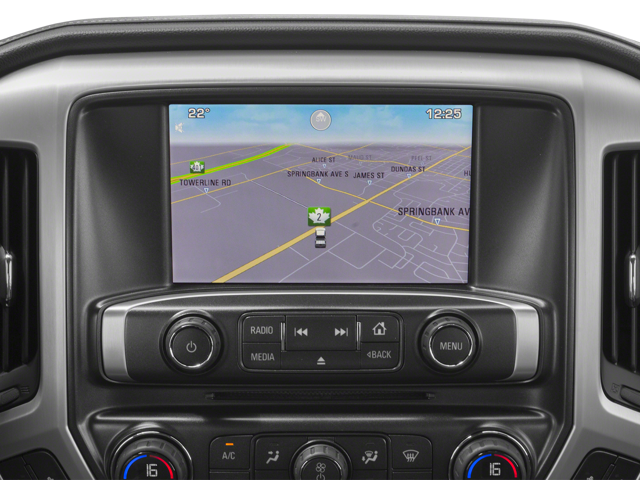

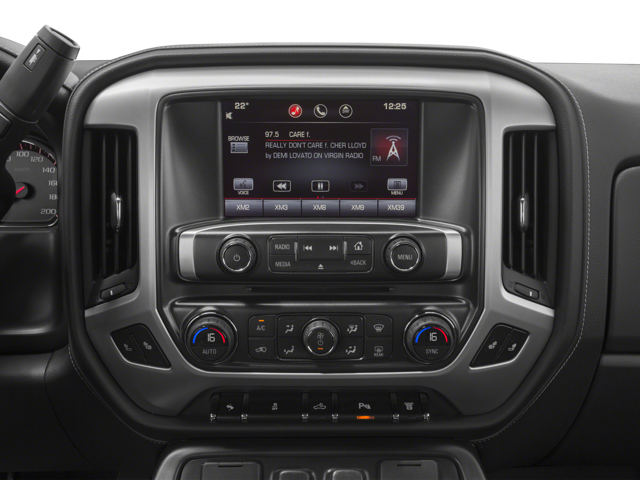

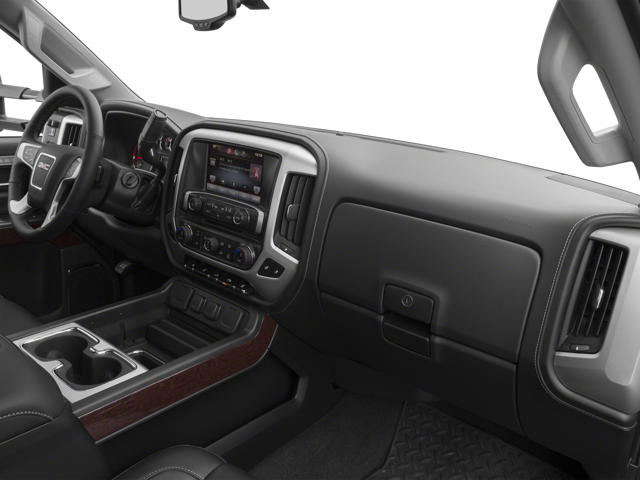

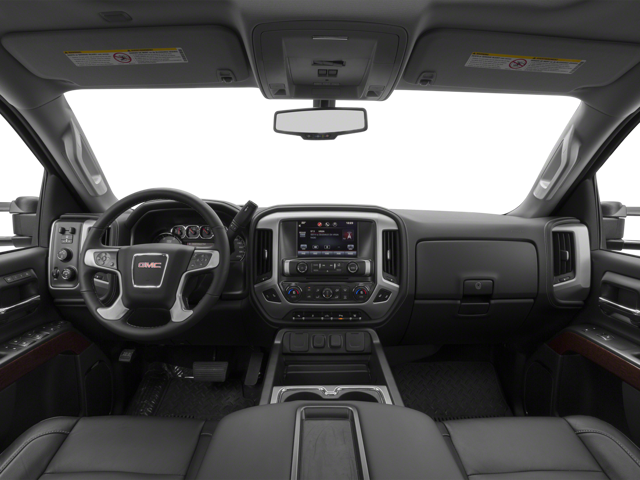

• Audio system, 8" Diagonal Color Touch Screen Navigation with IntelliLink, AM/FM/SiriusXM with USB ports, auxiliary jack, SD card slot, Bluetooth® streaming audio for music and most phones, hands-free smartphone integration, Pandora Internet radio and voice-activated technology for radio and phone
• Single-slot CD/MP3 player (Replaced by (U42) rear seat DVD/Blu-Ray Entertainment Package when (U42) is ordered.)
• SiriusXM Satellite Radio and HD Radio SiriusXM Satellite Radio includes a 3-month trial. (If you decide to continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current rates until you call 1-866-635-2349 to cancel. See SiriusXM Customer Agreement for complete terms at siriusxm.com. Other fees and taxes will apply. All fees and programming subject to change. IMPORTANT: The SiriusXM Satellite Radio trial package is not provided on vehicles that are ordered for Fleet Daily Rental ("FDR") use.)
• Bose Sound with 6 speaker system (7 speaker system including subwoofer when ordered with bucket seats).
• Bluetooth® for phone personal cell phone connectivity to vehicle audio system

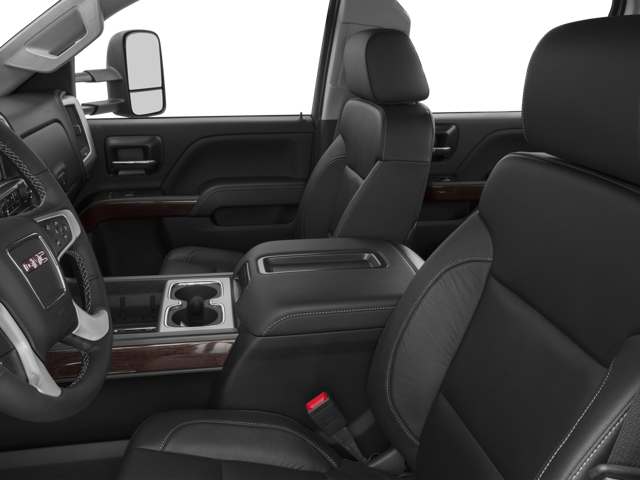

• Seats, front full-feature leather-appointed bucket with (KA1) heated seat cushions and seat backs. Includes 10-way power driver and front passenger seat adjusters, including 2-way power lumbar control, 2-position driver memory, adjustable head restraints, (D07) floor console and storage pockets.
• Seat trim, Leather-appointed front seats
• Seating, heated and cooled perforated leather-appointed front bucket

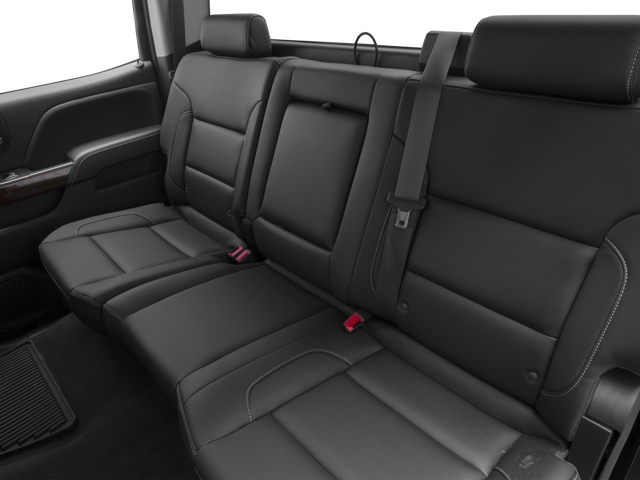

• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)

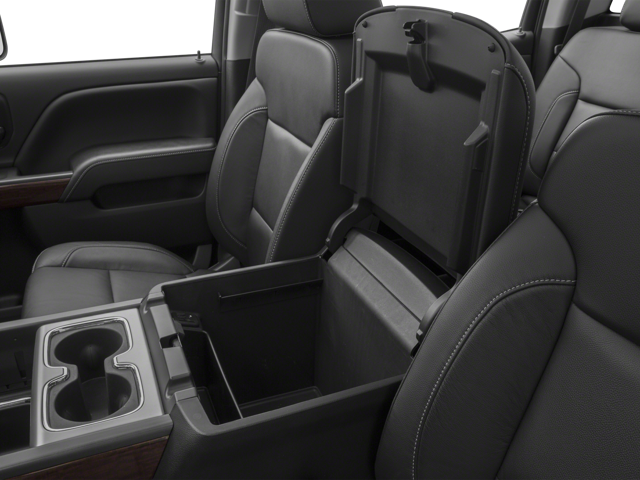

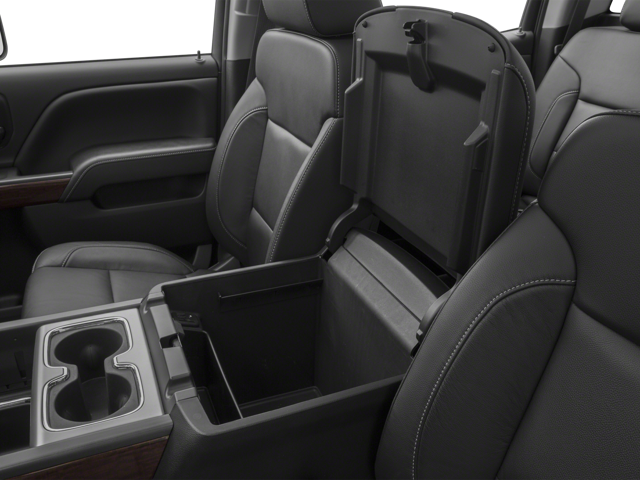

• Console, floor mounted, reconfigurable with moveable cup holders, cell phone storage, power cord management and hanging file holder capability
• Floor covering, color-keyed carpeting mats (include second row floor mats)
• Floor mats, color-keyed carpeted first and second row
• Steering column, manual Tilt-Wheel and telescoping

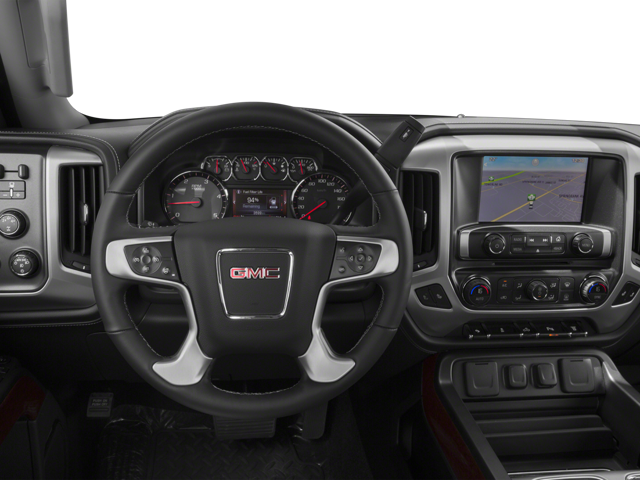

• Steering wheel, heated, leather wrapped with audio and cruise controls
• Steering wheel audio controls
• Display, enhanced driver instrument information , 8" multi-color configurable
• Windows, power with driver express up and down and express down on all other windows
• Door locks, power
• Remote Keyless Entry
• Remote vehicle starter system
• Pedals, power-adjustable
• Cruise control, steering wheel-mounted
• Universal Home Remote (Not included when (VYU) Snow Plow Prep Package is ordered.)
• Theft-deterrent system, unauthorized entry
• Air conditioning, dual-zone automatic climate control
• Defogger, rear-window electric
• Power outlet, 110-volt AC
• Mirror, inside rearview auto-dimming
• Visors, driver and front passenger illuminated vanity mirrors
• Assist handle, front passenger and driver on A-pillars

• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, single-stage frontal and thorax side-impact, driver and front passenger, and head curtain side-impact, front and rear outboard seating positions (Required with (C7A) 10,000 lb. (4536 kg) GVWR. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, frontal, driver and right front passenger, single stage
• OnStar, 6 months of Directions and Connections plan (Visit onstar.com for coverage map, details and system limitations. Services vary by model and conditions.)
• Front and Rear Park Assist, Ultrasonic
• Rear Vision Camera with dynamic guide lines

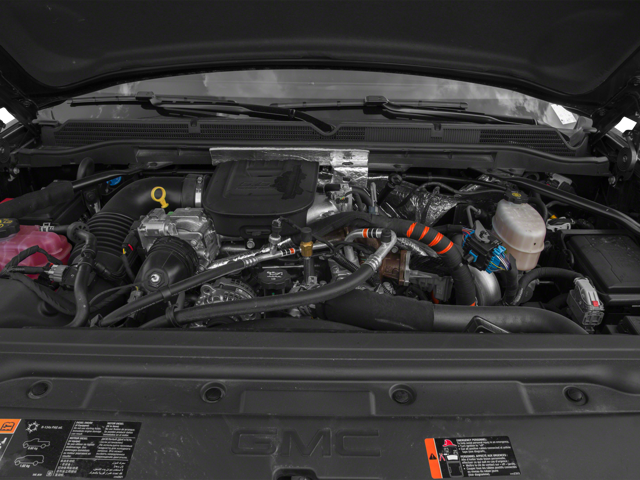

ENGINE, DURAMAX 6.6L TURBO DIESEL V8, B20-DIESEL COMPATIBLE

• (397 hp [296.0 kW] @ 3000 rpm
• 765 lb-ft of torque [1032.8 N-m] @ 1600 rpm)

• Rear axle
• 4.10 ratio (Requires (L96) Vortec 6.0L V8 SFI engine.)
• Suspension Package
• Standard includes 51mm twin tube shock absorbers and 33mm front stabilizer bar

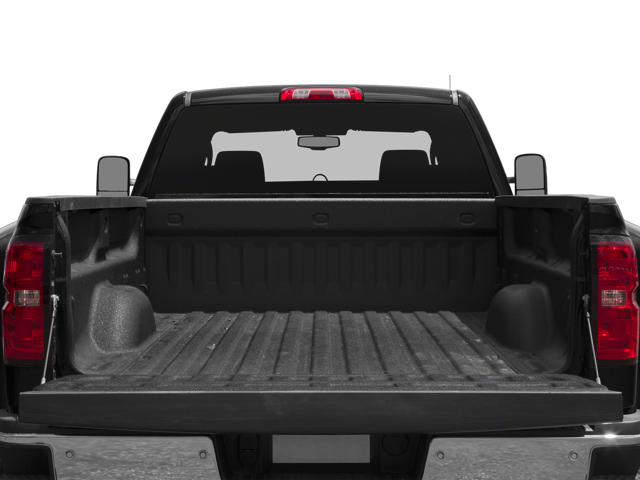

• Pickup box
• Wideside
• GVWR
• 10
• 800 lbs. (4899 kg) with single rear wheels (Requires (L96) 6.0L V8 engine and model TK35743.)
• Chassis
• single rear wheel
• Air cleaner
• high-capacity
• Transfer case
• electronic shift with rotary dial controls (Requires 4WD models.)
• Differential
• heavy-duty locking rear
• Four wheel drive
• Trailering equipment Trailering hitch platform 2.5" with a 2.0" insert for HD
• 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector to hook up parking lamps
• backup lamps
• right and left turn signals
• an electric brake lead
• battery and a ground
• The trailer connector also includes the 4-way for use on trailers without brakes - park
• brake/turn lamps (Deleted when (ZW9) pickup box delete or (9J4) rear bumper delete is ordered.)
• Cooling
• external engine oil cooler
• Cooling
• auxiliary external transmission oil cooler
• Battery
• heavy-duty 720 cold-cranking amps/80 Amp-hr maintenance-free with rundown protection and retained accessory power
• Alternator
• 150 amps
• Trailer brake controller
• integrated
• Frame
• fully-boxed
• hydroformed front section
• Underbody Shield
• frame-mounted shields includes front underbody shield starting behind front bumper and running to first cross-member
• protecting front underbody
• oil pan
• differential case and transfer case
• Steering
• Recirculating Ball
• Brakes
• 4-wheel antilock
• 4-wheel disc (Requires single rear wheels.)
• Exhaust
• aluminized stainless-steel muffler and tailpipe
• Wheels
• 18" (45.7 cm) forged polished aluminum includes 18" x 8" (45.7 cm x 20.3 cm) steel spare wheel. (Requires single rear wheels.)
• Wheelhouse liners
• rear (Not available with dual rear wheels.)
• Tire carrier lock keyed cylinder lock that utilizes same key as ignition and door
• Bumper
• front
• body-color
• Bumper
• rear body-color with bumper CornerSteps
• CornerStep
• rear bumper
• Moldings
• bodyside
• chrome
• Headlamps
• halogen projector with LED signature
• Fog lamps
• front
• halogen
• Lamps
• cargo area
• cab mounted with switch on center switch bank
• LED Lighting
• cargo box with switch on center switch bank
• Mirrors
• outside heated power-adjustable vertical camper
• manual-folding and extending
• black. Includes integrated turn signal indicators consisting of 50 square inch flat mirror surface positioned over a 20 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable).
• Glass
• deep-tinted
• Door handles
• chrome
• Tailgate and bed rail protection caps
• top
• Tailgate
• locking
• utilizes same key as ignition and door (Deleted with (ZW9) pickup box delete.)
• Tailgate
• EZ-Lift and Lower (Deleted when (ZW9) pickup box delete is ordered.)
• Cargo ties downs (4)
• movable upper (Deleted when (ZW9) pickup box delete is ordered.)
• Bose Sound with 6 speaker system (7 speaker system including subwoofer when ordered with bucket seats).
• Seat
• rear 60/40 folding bench (folds up)
• 3-passenger (includes child seat top tether anchor)
• Console
• floor mounted
• reconfigurable with moveable cup holders
• cell phone storage
• power cord management and hanging file holder capability
• Steering column
• manual Tilt-Wheel and telescoping
• Instrumentation
• 6-gauge cluster featuring speedometer
• fuel level
• engine temperature
• tachometer
• voltage and oil pressure
• Display
• enhanced driver instrument information
• 8" multi-color configurable
• Windows
• power with driver express up and down and express down on all other windows
• Remote vehicle starter system
• Pedals
• power-adjustable
• Theft-deterrent system
• unauthorized entry
• Air conditioning
• dual-zone automatic climate control
• Power outlet
• 110-volt AC
• Mirror
• inside rearview auto-dimming
• Visors
• driver and front passenger illuminated vanity mirrors
• Assist handle
• front passenger and driver on A-pillars
• StabiliTrak
• stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Front and Rear Park Assist
• Ultrasonic
• Rear Vision Camera with dynamic guide lines

• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 7050
• Curb Weight - Front (lbs): 4542
• Curb Weight - Front (lbs): 3825
• Curb Weight - Rear (lbs): 2913
• Curb Weight - Rear (lbs): 2870
• Gross Vehicle Weight Rating Cap (lbs): 10000
• Gross Combined Wt Rating (lbs): 24500
• Gross Combined Wt Rating (lbs): 20500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 17100
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13900
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1710
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1390
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 17100
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 13900
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4275
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3475
• Maximum Trailering Capacity (lbs): 17100
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 7050
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 5600
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 7050
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 51.00
• Shock Absorber Diameter - Rear (mm): 51.00
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: QWF
• Rear Tire Order Code: QWF
• Front Tire Size: LT265/70R18E
• Rear Tire Size: LT265/70R18E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 18 x 8.0
• Rear Wheel Size (in): 18 x 8.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: 16.00
• Steering Ratio (:1), At Lock: N/A
• Turning Diameter - Curb to Curb (ft): 51.8
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 153.70
• Length, Overall w/o rear bumper (in): 239.5
• Width, Max w/o mirrors (in): 80.51
• Height, Overall (in): 78.15
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 151.10
• Cab to Axle (in): 41.26
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 39.33
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.42
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.86
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 51.02
• Cargo Box (Area) Height (in): 21.22
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 61.0
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Front Hip Room (in): 60.73
• Second Head Room (in): 40.50
• Second Leg Room (in): 40.93
• Second Shoulder Room (in): 64.33
• Second Hip Room (in): 60.24
• Summary
• Vehicle Name: GMC Sierra 3500HD
• Body Style: Crew Cab Pickup
• Body Code: E63
